آلة تقطيع الرولات عالية السرعة مع تحكم رقمي
استفسار سلة
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
WFQ700-1300 Series Horizontal Computer Slitting Machine
1)Functions and Characteristics:

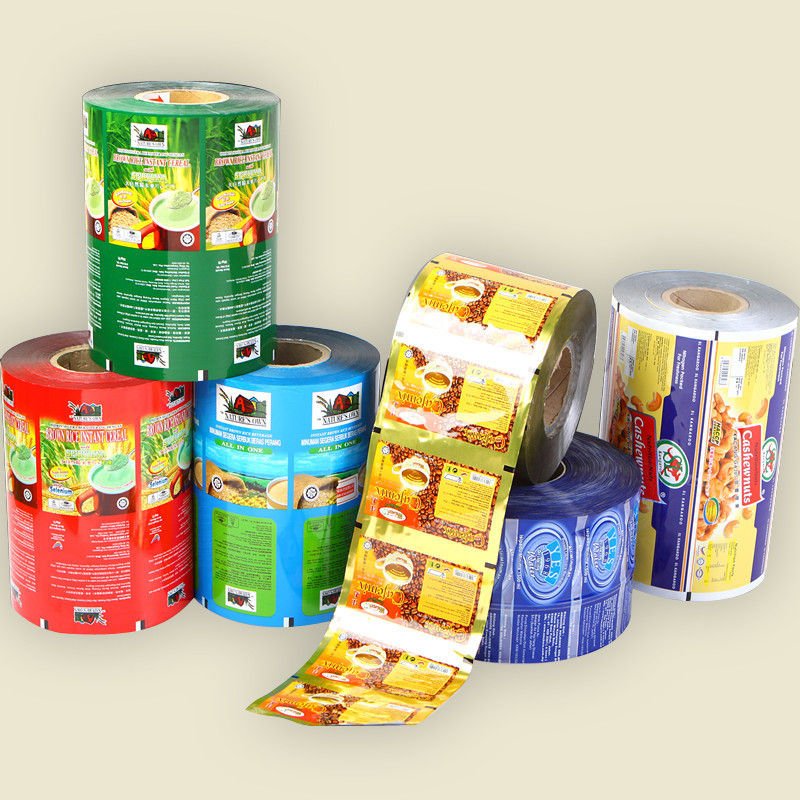

This machine is suitable for slitting and rewinding such various roll materials as BOPP,PET,CPP,PVC, aluminum foil and roll paper.,etc. and can cut edge,separate and cut material according to different requirements during production.
2) Performance and Characteristics:
1. Main Motor: Vector motor with inverter controller.
2. Independent master control panel, more flexible and easier operation.
3. Automatic EPC for unwinding, photocell is suitable for tracking the edge and the printed line of material.
4. Equipped with air shaft for unwinding material loading,magnetic powder brake for unwinding tension control.
5. Air shaft for rewinding, Magnetic powder clutch for rewinding tension control
6. Equipped with air trim discharge conveying system.
7. Automatic meter counting device.
8. Pressure roller for rewinding to make rewinding roll more uniform.
Main Technical Variables:
| Tyep | LWF-900 | LWF-1100 | LWF-1300 | LWF-1500 | LWF-2000 |
| Max.Width of Material | 900mm | 1100mm | 1300mm | 1500mm | 2000mm |
| Max.material Diameter | Φ700mm | Φ700mm | Φ700mm | Φ700mm | Φ700mm |
| Max. Rewinding diameter | Φ500mm | Φ500mm | Φ500mm | Φ500mm | Φ500mm |
| Width of Final Roll (mm) | 50-800 | 50-1000 | 50-1200 | 50-1400 | 50-1900 |
| Max.Slitting Speed(m/min) | 160m/min | 160m/min | 160 m/min | 160m/min | 160m/min |
